Floor Plan

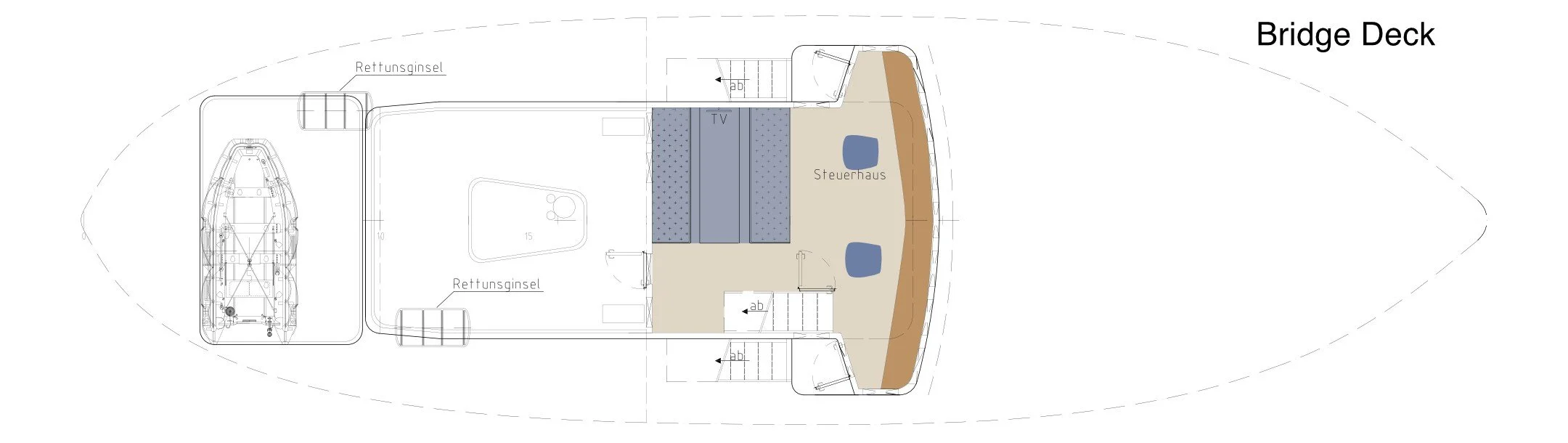

Boat deck plan showing an area labeled 'Bridge Deck' with seating, a steering house, stairs, and a designated rescue island area. The layout includes indoor and outdoor spaces for navigation and safety.

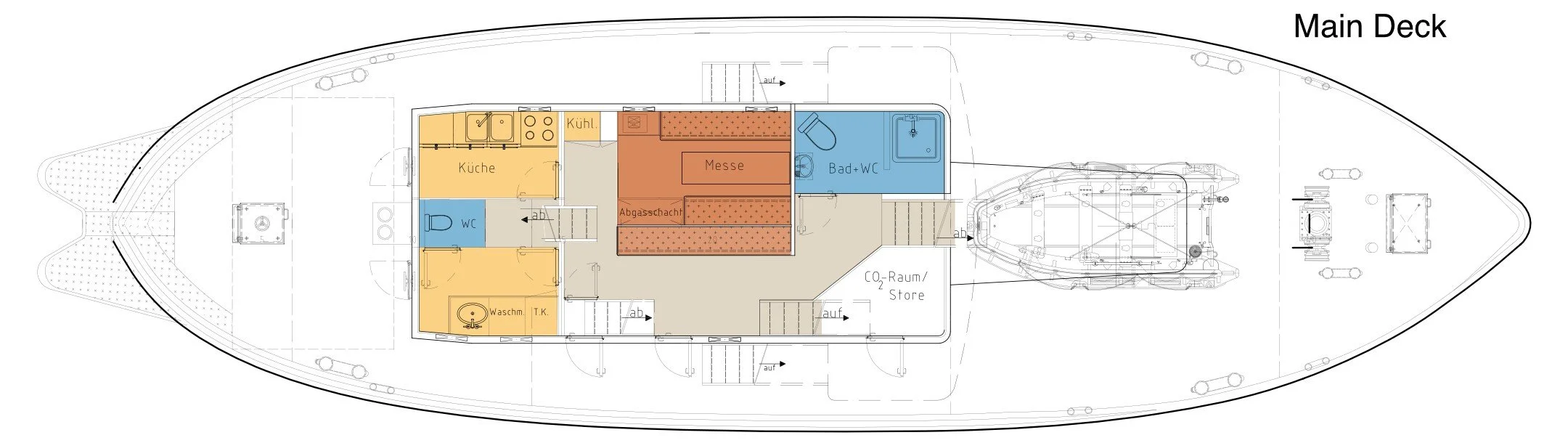

Top-down view blueprint of a boat interior layout, showing rooms labeled in German, including kitchen (Küche), bathroom (WC), laundry room (Waschm.), storage (CO2-Raum/Store), dining area (Messe), boiler room (ab), and a main deck outside.

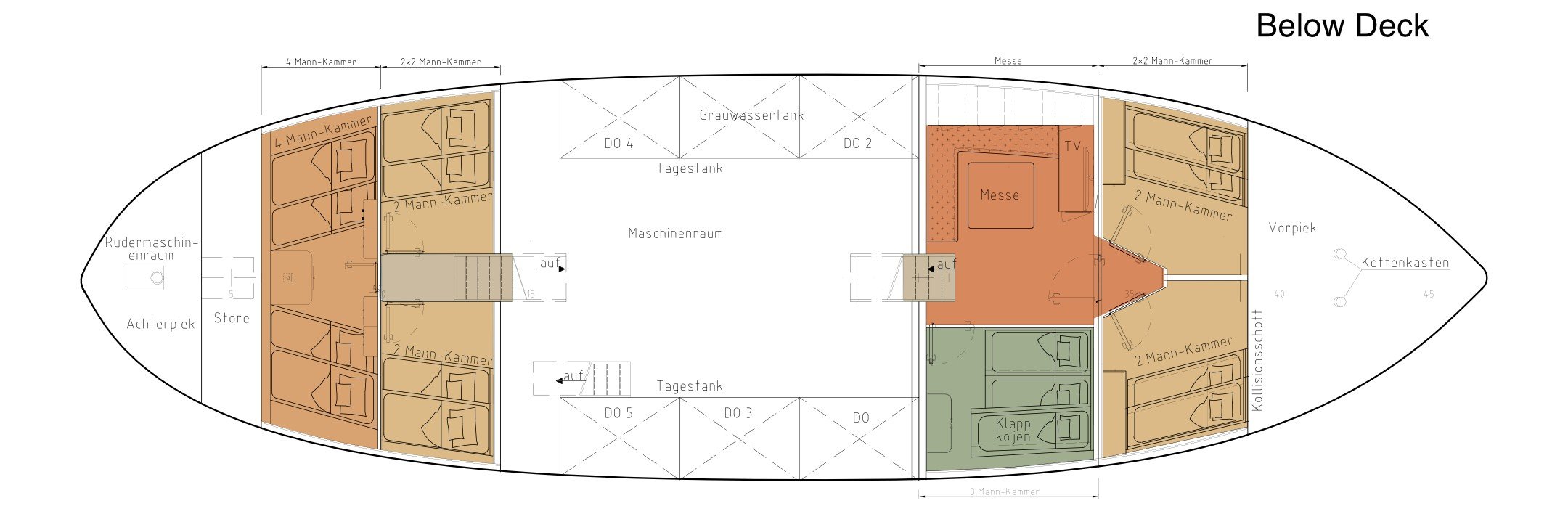

Floor plan of a boat deck showing separate rooms, storage areas, and labeled sections in German, including cabins with bunks, a wash area, and a central machinery room.

Specifications

Name of the Vessel Ulla Rinman

Home port Longyearbyen, Svalbard

Callsign LKTQ

Register Norway, NOR

Shipstype Vessel with limited passenger transport up to 12 PAX

Hull characteristic Material steel icebreaking bow, ice strengthened

Length 23,82 m

Breadth 6,90 m

Draft 3,10 m

Brutto tonage 93 t

Cruise speed 8,5 kn

Fuel capacity 24 t

Range 3000nm

Maximum time at sea 7 weeks/1600nm

Fresh water capacity 3 t

Watermaker 200 ltr/h

Generator 380/230V/50Hz (auxiliary engine) 20 KW

Hydraulic crane/winch SWL 0,5t/7m foredeck

Hydraulic crane/winch SWL 0,7t/4m aftdeck

Cabins 4 (2+2+3+4)

Total banks 11 (max pax 11, recommended 7-11)

Communication Iridium Satellite, Starlink

Navigation equipment 2 radars, satellite compass, autopilot, echo sounder, navtex, 2 VHF radio, AIS, 2xGPS, 2 independent chartplotters, 2 searchlights, 2 handhold VHF. Access point for navigation data to share with clients.

Dinghy 1 Zodiac Milpro MK 5 HD, Yamaha 50 hp,

number of persons 15

Dinghy 2 Pioner 14 ft, Suzuki 30 hp, number of

persons 5
